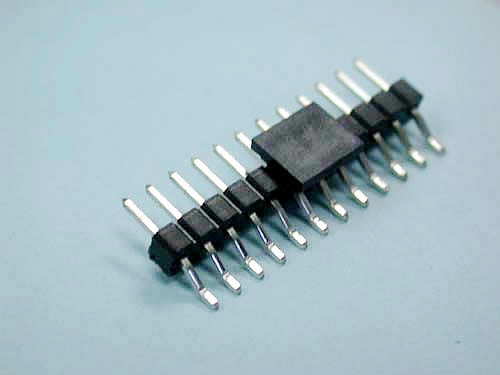

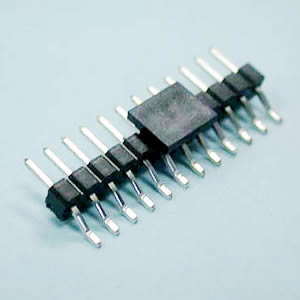

P1015 Sinle Row 04 to 40 Contacts Horizonal SMT Type
- Sinle Row 04 to 40 Contacts
- Horizonal SMT Type
Specification:
- Current Rating: 3.0 Amp
- Insulator Resistance: 1000 M ohm min.
- Contact Resistance: 20m ohm Max.
- Dielectric Withstanding: 500 V AC/Min.
- Operating Temperature: -40℃ ~ +105℃
- Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
- Contact Material: Phosphor Bronze
- Insulator Material: Polyester, UL 94V-0
- Standard : P.B.T
- Contact Plated: Full Gold, Full Tin,Selective Plated
