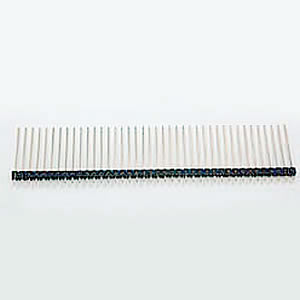

P101 Single Row 02 to 40 Contacts Straight And Right Angle Type
- 0.1”(2.54mm) Pin Header
- Single Row 02 to 40 Contacts
- Straight And Right Angle Type Profile: 2.54mm
Specification:
- Current Rating: 3.0 Amp
- Insulator Resistance: 1000 Megohms min.
- Contact Resistance: 20 Milliohms Max.
- Dielectric Withstanding: AC 500V
- Operating Temperature: -40℃ ~ +105℃
- Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
- Contact Material: Brass
- Insulator Material: Polyester, UL 94V-0
- Standard : P.B.T
- Contact Plated: Full Gold, Full Tin,Selective Plated
