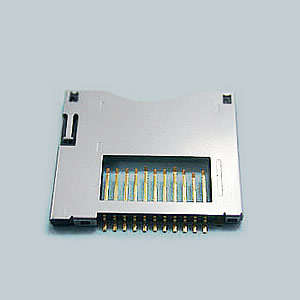

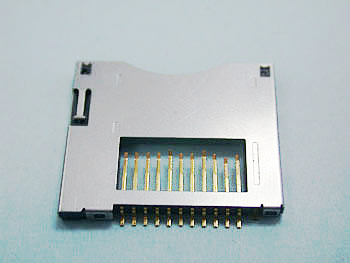

• Secure Digital Memory Card
    • Top Mount W/Push Push Type


    Specification:

    • Current Rating: 0.5Amp
    • Voltage Rating: 100V AC/DC
    • Contact Resistance: 100 Ohm Max.
    • Insulator resistance: 1000M ohm min.
    • Withstanding Voltage : 500V AC/Minute
    • Operating Temperature Range : -20℃~+85℃


    Material And Finish:

    • Insulator : High Temperature Plastic
    • Plastic, UL 94V-0
    • Contact : Copper Alloy
    • Contact Plated Selective Gold Plated (standard)
    • Shell : Stainless steel

    More Specification (PDF)

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

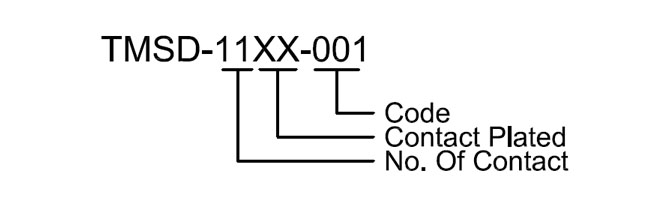

Series Number TMSD-11
