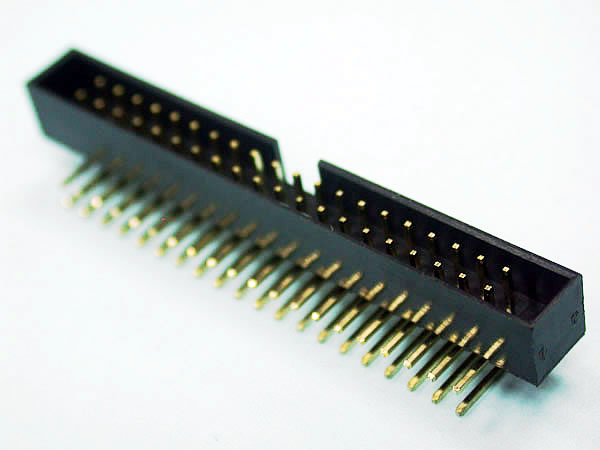

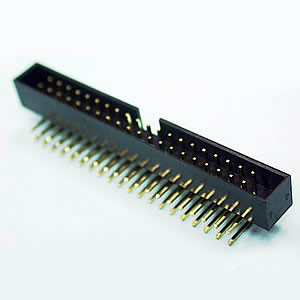

• 0.079"(2.0mm)Box Header
    • Dual Row 06 to 68 Contacts Straight And Right Angle Type Profile : 5.6mm


    Specification:

    • Current Rating: 3 Amp
    • Insulator Resistance: 5000 Megohms min
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃~+105℃
    • Contact Material: Phosphor Bronze or Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard : P.B.T
    • Contact Plated: Full Gold, Full Tin, Selective Plated
    • Standard Gold Flash all Over Nickel

    More Specification (PDF)

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

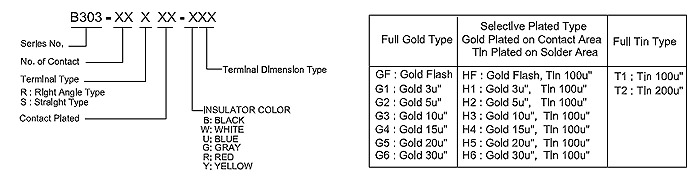

Series Number B303
No. of Contact
Terminal Type
Contact Plated
Insulator Color
See Catalog
