  • B304B Dual Row 10 to 100 Contacts Four Wall Shrouded Straight And Right Angle Type

    B304B Dual Row 10 to 100 Contacts Four Wall Shrouded Straight And Right Angle Type

    • 0.05"X0.05"(1.27X1.27mm)Box Header
    • Dual Row 10 to 100 Contacts Four Wall Shrouded Straight And Right Angle Type Profile : 5.7mm


    Specification:

    • Current Rating: 3Amp
    • Insulator Resistance: 5000 Megohms min
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃~+105℃
    • Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0Standard: Nylon-6T
    • Contact Plated: Full Gold, Full Tin, Sele
    • ctive Plated Standard Gold Flash all Over Nickel

    More Specification (PDF)

B304B Dual Row 10 to 100 Contacts Four Wall Shrouded Straight And Right Angle Type

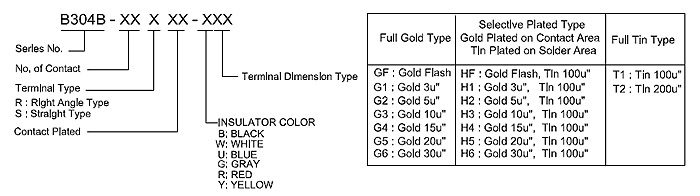

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series Number B304
No. of Contact
Terminal Type
Contact Plated
Insulator Color
