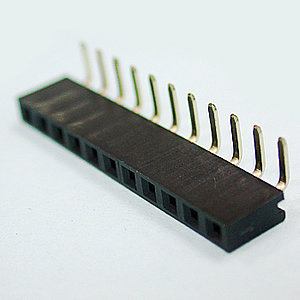

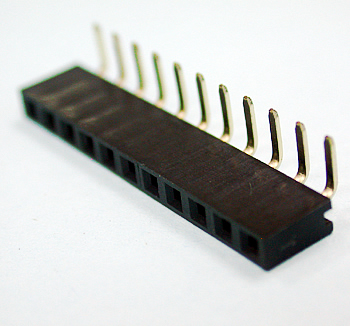

F207 Straight And Right Angle Type

• 0.1"X0.1" (2.54mm) Female Header
• Single Row 02 to 40 Contacts Straight And Right Angle Type Profile: 5.7mm


Specification:

• Current Rating: 3Amp
• Insulator Resistance: 5000 Megohms min
• Contact Resistance: 20 Milliohms Max.
• Dielectric Withstanding: AC 500V
• Operating Temperature: -40℃~+105℃
• Contact Material: Phosphor Bronze
• Insulator Material: Polyester, UL 94V-0
• Standard: P.B.T
• Contact Plated: Full Gold, Full Tin, Selective Plated
• Standard: Gold Flash All Over Nickel
