• 0.05”(1.27mm)Female Header
    • Dual Row 04 to 100 Contacts
    • Straight Type Profile : 3.4mm


    Specification:

    • Current Rating : 1Amp
    • Insulator Resistance : 1000 Megohms min.
    • Contact Resistance : 20 Milliohms Max.
    • Dielectric Withstanding : AC 500V
    • Operating Temperature : -40°C ~ +105°C
    • Max Processing Temp : 230°C For 30~60 Seconds (260°C For 10 Seconds)
    • Contact Material : Phosphor Bronze
    • Insulator Material : Polyester, UL 94V-0
    • Standard : Nylon-6T or LCP
    • Contact Plated : Full Gold, Full Tin
    • Standard : Gold Flash all Over Nickel

    F226A-2*XXSXX(PDF)

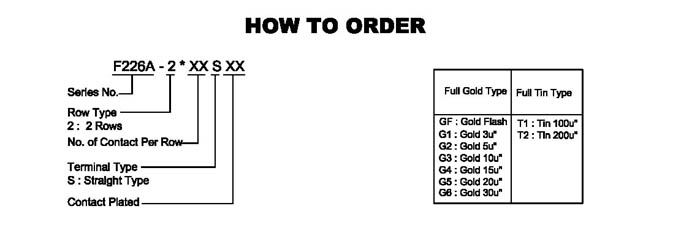

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. F226A
Row Type 2: 2 Rows
No. of Contact Per Row
Terminal Type S: Straight Type
Contact Plated
