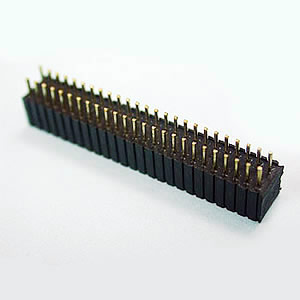

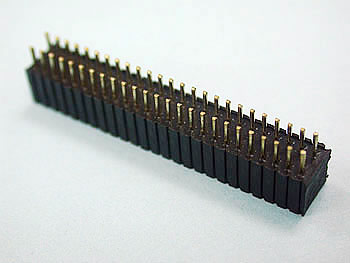

• 0.05"x0.1"(1.27X2.54mm)Female Header
    • Single Row 02 to 50 Contacts Straight Type Profile: 4.6mm


    Specification:

    • Current Rating: 1Amp
    • Insulator Resistance: 5000 Megohms min
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃~+105℃
    • Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Contact Plated: Full Gold, Full Tin

    More Specification (PDF)

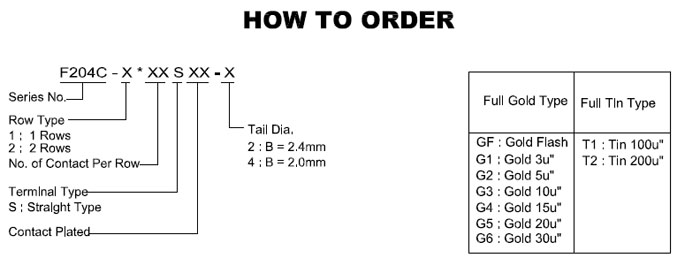

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series Number F204C
Row Type 2 Rows
No. of Contact Per Row
Terminal Type Straight Type
Contact Plated
Tail Dia.
