  • 871 SMT Type Hdight 4.25mm

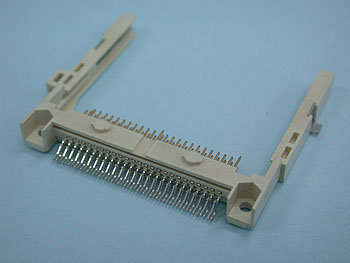

    871 SMT Type Hdight 4.25mm


      0.05"(1.27mm)Compact Flash Card
    SMT Type Hdight 4.25mm

      Specification
      Current Rating: 0.5Amp
      Voltage Rating: 100V AC/DC
      Contact Resistance: 40 Ohm Max.
      Insulator resistance: 1000M ohm min.
      Withstanding Voltage : 500V AC/Minute
      Operating Temperature Range :  -20℃~+60℃
      Material And Finish
      Insulator : Polyester, UL 94V-0
    Standard : L.C.P.
      Contact : Copper Alloy
      Contact Plated Gold Plated (standard)


    More Specification (PDF)

871 SMT Type Hdight 4.25mm

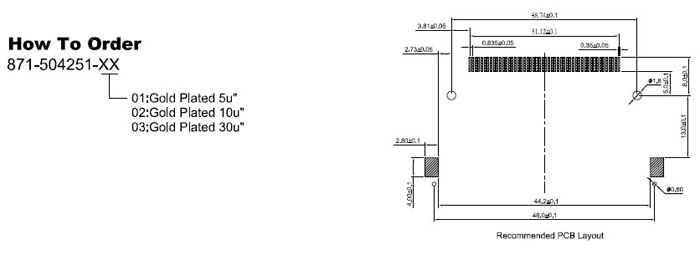

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series Number 871-504251
Contact Plated
See Catalog
