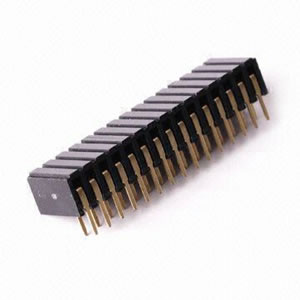

Model Number:F202D-2*XXRXXX.-1 R/A Type 1.27mm Female Header with Current Rating of 2A

Key Specifications/Special Features:

• 2.0mm pitch female header R/A type double row H: 7.2mm W: 4.85mm
• Specifications:
• Current rating: 2.0A
• Voltage rating: 150V AC/DC
• Contact resistance: 30m Ohms Max
• Insulator resistance: 1,000M Ohms minimum
• Withstanding voltage: 500V AC/Minute
• Operating temperature range: -40 to +105 degrees C
• Material and finish
• Insulator: nylon 6T UL94V-0
• Insulator color: black
• Contact: brass
• Contact plated: full gold, full tin, selective plated
• Package: in bag
