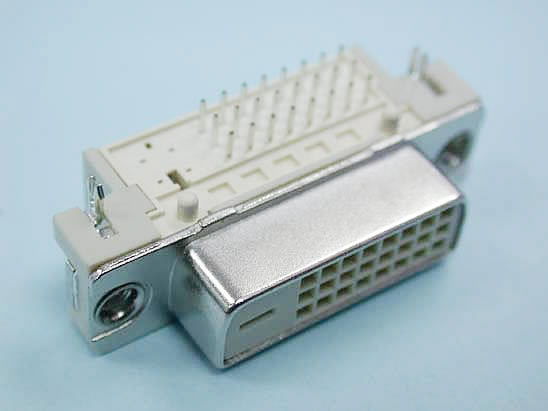

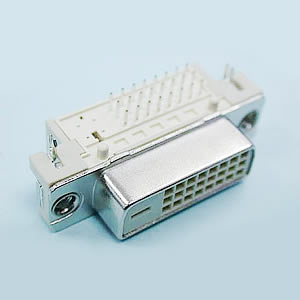

• DVI (Digital Visual Interface)
    • 24 Contacts Right Angle Type


    Specifications:

    • Current Rating: 1.0 Amp
    • Voltage Rating: 250V AC/DC
    • Contact resistance: 20m Ohm Max
    • Insulator resistance: 5,000M ohm min.
    • Withstanding Voltage: 500V AC/Minute
    • Operating Temperature Range: -40℃+85℃
    • Max Processing Temp: 230℃ For 30~60 Seconds (260℃ for10 seconds)


    Material And Finish:

    • Insulator: Polyester(UL 94V-0)
    • Standard : Nylon 6T
    • Contact: Phosphor Bronze
    • Contact Plated: Gold plated(standard)
    • Sheel: Copper Alloy With Nicket Plated

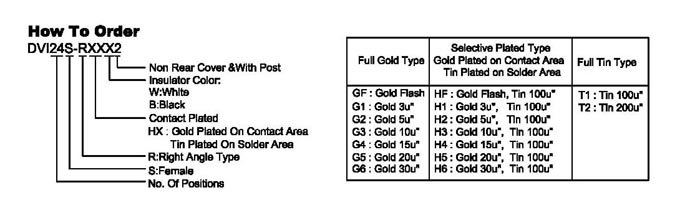

    DVI24S-RXXX2
