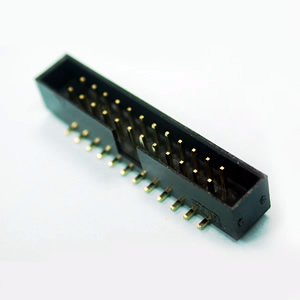

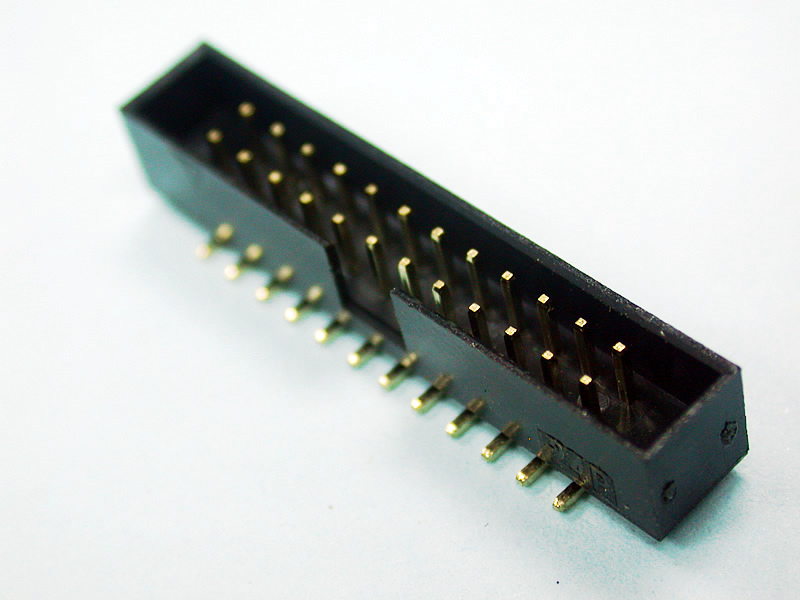

• 0.079"(2.0mm) Box Header
    • Dual Row 06 to 68 Contacts Four Wall Shrouded
    • SMT Type Profile : 5.6mm


    Specification:

    • Current Rating: 3 Amp
    • Insulator Resistance: 1000 M ohm min.
    • Contact Resistance: 20m ohm Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃ ~ +105℃
    • Max Processing Temp : 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard : NY-6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated
    • Standard: Gold Flash all Over Nickel


    B303-XXMXX-X
