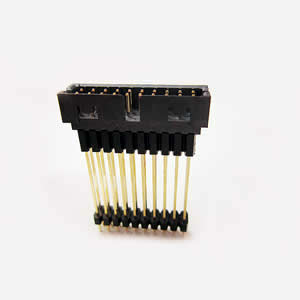

• 0.079"(2.0mm) Box Header
    • Dual Row 08 to 50 Contacts
    • Straight Type Profile : 6.4mm


    Specification:

    • Current Rating: 2 Amp
    • Insulator Resistance: 5000 M ohm min.
    • Contact Resistance: 20m ohm Max.
    • Dielectric Withstanding: 500V AC/Minute
    • Operating Temperature: -40℃ ~ +105℃
    • Max Processing Temp : 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Box Header Insulator : LCP , Pin Header Insulator : NY6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated
    • Standard: Gold Flash all Over Nickel

    B303C3
